White Recessed Panel Door Thermofoil Kitchen Cabinets

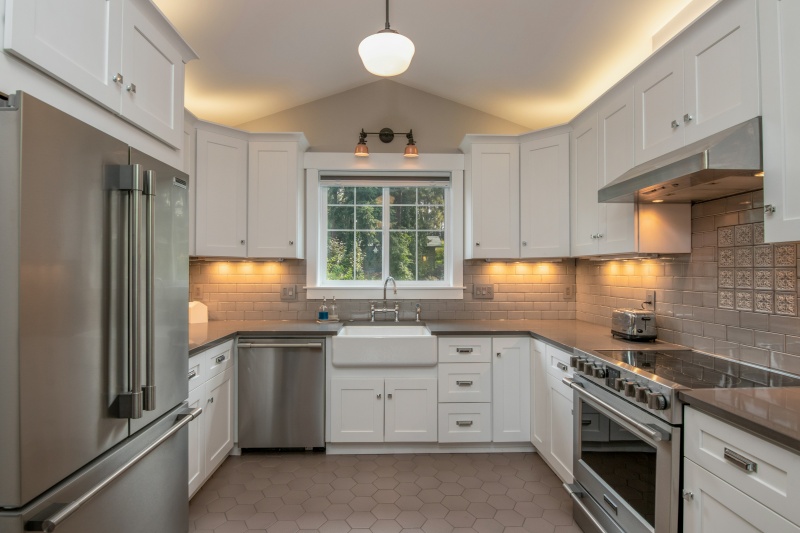

These white recessed‑panel‑door thermofoil kitchen cabinets feature a bright, consistent white finish that brightens up kitchen spaces. Timeless and classic, white avoids the risk of falling out of style. They are widely popular for North‑American home renovations, apartment retrofits, and large‑scale mid‑to‑low‑budget commercial projects, plus they require minimal‑effort after‑sales maintenance.

At Union Wood, our white recessed‑panel‑door thermofoil kitchen cabinets pair flexibly with quartz countertops of all hues and a full range of hardware. They work seamlessly with interior‑design themes including modern, transitional, minimalist and Nordic styles. We also offer one‑stop sourcing: countertops and hardware can be pre‑configured per‑your requirements, packed together and shipped door‑to‑door.

Our Vietnam‑based factory manufactures not only kitchen cabinets with recessed‑panel doors, but also raised‑panel and flat‑panel cabinets to satisfy diverse‑project requirements. Furthermore, custom‑made cabinet doors based‑on‑provided drawings are available for large‑volume orders, helping you realize your ideal‑kitchen vision.

Table of Contents

1. Product Details
2. Specification For Wholesales
3. Recessed‑Panel Door Structure
4. Thermofoil Process Principle
5. Advantages of Thermofoil Recessed‑Panel vs. Melamine Recessed‑Panel
6. Cabinet Box Substrate Options
7. Thermofoil Kitchen Cabinets Finishes & Optional Variants
8. Advantages of White Recessed‑Panel Door Thermofoil Kitchen Cabinets
9. Inherent Limitations of White Recessed‑Panel Door Thermofoil Kitchen Cabinets
10. FAQs

Specification For Wholesales

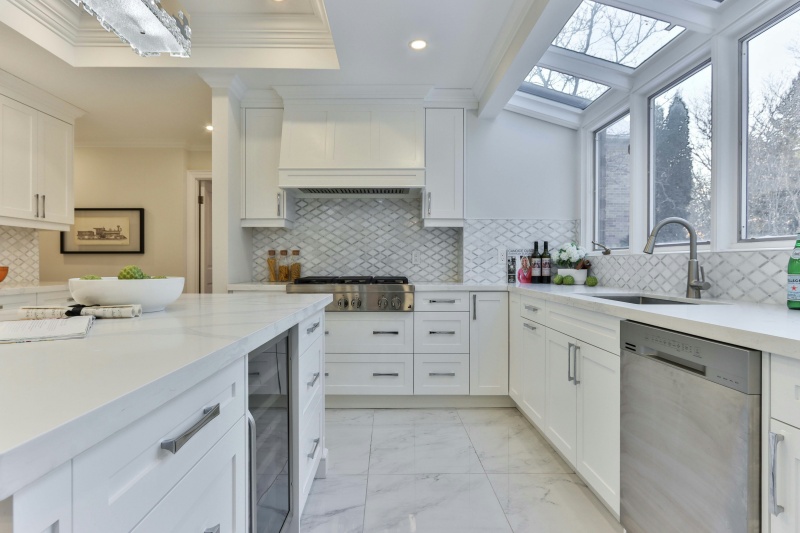

Recessed‑Panel Door Structure

The most appealing feature of these white recessed‑panel door thermofoil kitchen cabinets lies in their door design. Compared with flat‑panel cabinets, the recessed lines create enhanced visual depth and dimension.

1. Door Substrate: Premium Furniture‑Grade MDF

MDF offers excellent machinability at a lower cost than solid wood, while resisting insect infestation and rot. It is ideal for cabinet doors with deep routed grooves and carvings, forming the required shape of surrounding frames and center panels. Edges are radiused to prevent chipping from impact.

For an upgraded premium version, plywood or solid wood may be selected as frame substrates. However, these materials tend to produce more burrs during routing; therefore MDF remains the industry‑standard substrate.

• Standard Door Thickness: 3/4 inch (19 mm), the common cabinet door thickness for North‑American applications.

2. Door Profile Details

• A flat border is retained on all four sides, with the center panel recessed inward; no raised carved ornamentation.
• Frame corners feature soft micro‑radii to reduce injury risks from bumps and impacts.
• All four door edges as well as inner groove walls are fully machined by routing, preparing the surface for thermofoil lamination.

Thermofoil Process Principle

Thermofoil refers to the vacuum‑negative‑pressure hot‑lamination process, the most critical manufacturing technology for white recessed‑panel door thermofoil kitchen cabinets.

• Substrate Pretreatment: Medium‑Density Fiberboard (MDF) is CNC‑routed into shape with recessed profiles. Surfaces are sanded smooth and coated with specialized adhesive (or the film comes with a built‑in hot‑melt adhesive layer).
• Heating & Softening: White PVC film passes through a heating zone, transforming from a highly elastic state to a viscous‑flow state with ductility and adhesion.
• High‑Pressure Bonding: Vacuum forming (negative pressure draws film to wrap complex curved surfaces) or hot‑roll pressing (positive‑pressure bonding for flat / low‑relief surfaces) is applied. The film instantly fills micro‑pores on the substrate and forms molecular‑level diffusion bonding.
• Cooling & Setting: Cooled by chill rolls or ambient cooling, the PVC film adheres firmly to the panel, delivering seamless wrapping with no paint spraying required.

Advantages of Thermofoil Recessed‑Panel vs. Melamine Recessed‑Panel

This white recessed‑panel‑door thermofoil kitchen cabinet delivers strong cost‑performance compared with other finishes. However, its price gap versus melamine finish is not substantial, leaving many buyers undecided between the two options. Thermofoil features several unique advantages that melamine cannot match.

• Supports three‑dimensional shaping: Thermofoil uses flexible PVC film to fully wrap the MDF substrate under vacuum and high pressure. It conforms perfectly to complex grooves, curves and carved 3‑D profiles, producing seamless surfaces with no edge‑banding strips. Melamine paper is rigid with poor ductility; it can only be applied to flat surfaces or simple straight‑edge banding and cannot form deep‑recessed or curved profiles.
• No risk of edge‑banding delamination: The full‑wrap construction of thermofoil completely eliminates risks of edge‑band peeling and chipping, making it ideal for frequently‑touched cabinet doors. Melamine panels rely on mechanical edge‑banding. Edge lifting often occurs under humid conditions or upon impact, and such damage is non‑repairable.
• Superior aesthetics: PVC film offers a broad color portfolio. It reproduces high‑fidelity wood grain, stone grain and solid colors with excellent surface luster for strong visual impact. Restricted by its paper‑based overlay, melamine lacks the three‑dimensional texture and gloss of PVC lamination. It delivers a lower‑grade, comparatively flat visual effect.
• Enhanced moisture resistance: Thermofoil’s fully‑enclosed wrap blocks moisture from penetrating the substrate, performing exceptionally well in humid environments such as kitchens. If melamine panel edge‑banding gets damaged, moisture easily seeps into the core material and causes substrate swelling and warping.

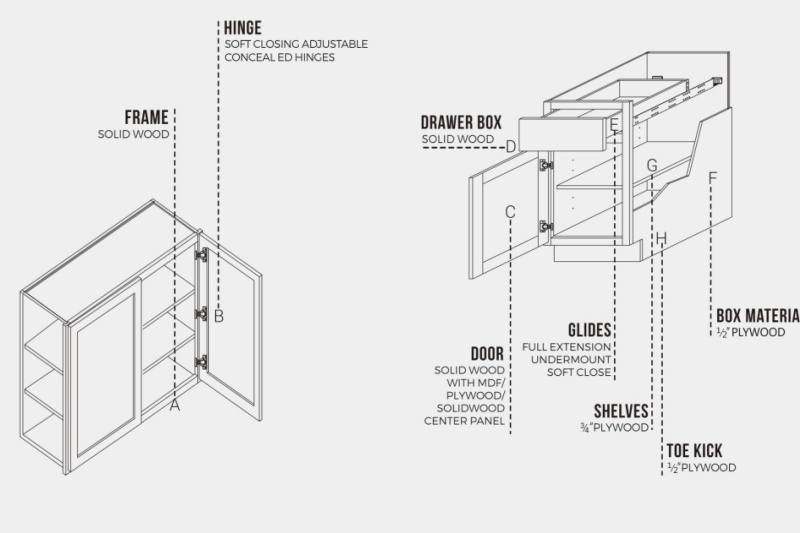

Cabinet Box Substrate Options



Our bulk‑supplied white recessed‑panel‑door thermofoil kitchen cabinets offer multiple cabinet‑box substrate selections for projects of varying budgets. All material options satisfy regular‑use kitchen requirements.



1. Plywood Cabinet Box

Constructed from glued‑up solid‑wood veneers. 1/2‑inch plywood is used for framed cabinets, and 3/4‑inch plywood for frameless cabinets to guarantee structural stability. Plywood‑box cabinets feature extended service life, outstanding moisture resistance and superior screw‑holding power, keeping hardware firm and resistant to loosening. Suitable for coastal humid zones, long‑term commercial projects and high‑end hotel developments. CARB P2 and E0 low‑formaldehyde environmental certifications are obtained.



2. MDF Cabinet Box

MDF delivers an ultra‑smooth, flat surface well‑suited for vacuum thermofoil lamination and paint finishing. It optimally showcases paint‑film texture and grain. Suited for bulk apartment and rental‑property project applications.



3. Particleboard Cabinet Box

A budget‑friendly, most‑cost‑effective solution for low‑budget projects. Meets basic indoor‑kitchen requirements for scenarios with moderate demands on cabinet durability and load‑bearing capacity.

---

Thermofoil Kitchen Cabinets Finishes & Optional Variants

1. Color: The mainstream option is Satin White. Cool‑white and warm‑white versions are also available. Additional colors can be custom‑made against color swatches. Confirm physical color samples prior to purchase; custom patterns and wood grain finishes are also offered.

2. Surface Texture: Matte, satin‑soft, and high‑gloss finishes are achievable by selecting different PVC films. Satin finish is the most widely used. Matte delivers soft, non‑glare visuals with a premium feel, while high‑gloss produces a mirror‑like appearance.

3. Customization Options

• Cabinet doors can be pre‑drilled for American‑style pulls; handle‑less concealed‑handle execution is also available.
• Matching Thermofoil drawer fronts from the same series deliver a perfectly unified look for doors and drawers.
• Decorative mouldings, light valances and corner decorative posts can be incorporated to create a complete whole‑kitchen aesthetic.

Note: Thermofoil doors cannot be repainted for color alteration after production. Physical color samples must be confirmed before order placement.

Advantages of White Recessed‑Panel Door Thermofoil Kitchen Cabinets

• Superior visual consistency: Doors within one production run feature even color with zero color deviation, even for large‑volume orders. Recessed grooves are fully wrapped in white film, free of paint runs, specks and brush marks. Clean finished appearance; classic white suits nearly all American interior styles.
• Cost‑performance benefit: Compared with solid‑wood doors plus paint finishing, thermofoil vacuum‑forming carries lower production costs and shorter lead times, delivering notable cost advantages for bulk project procurement.
• Superior shaping capability: MDF substrate reliably supports complex milling for recessed‑panel profiles. Paint struggles to achieve even coating inside deep grooves on intricately carved doors, whereas thermofoil film fully conforms to all milled edges and corners.
• Easy daily maintenance: Dense PVC surface allows grease and sauce stains to be wiped clean with a damp cloth. No waxing or touch‑up repainting required. Satin surfaces show fewer fingerprints versus high‑gloss variants.
• RTA flat‑pack format: All cabinet components are shipped flat‑packed, maximizing loading efficiency for 40HQ containers and cutting ocean freight costs. North‑American warehouses and contractors can rapidly assemble and fulfill orders.

Inherent Limitations of White Recessed‑Panel Door Thermofoil Kitchen Cabinets

• Heat sensitivity: Thermofoil (PVC) material cannot withstand prolonged direct high‑heat radiation. Maintain proper clearance between doors and ovens, cooktops and dishwashers. Heat‑shield panels are recommended near heat sources to prevent film blistering and delamination triggered by hot steam.
• Limited repairability: Deep scratches, cuts or localized blistering on thermofoil film cannot be sanded and spot‑repaired. Damaged doors or drawer fronts require full replacement.
• Scratch and impact resistance: Though the surface film offers moderate wear resistance, it is less scratch‑resistant and impact‑resistant than solid wood, making surface scratches more likely in everyday use.
• Yellowing risk: Low‑grade white thermofoil film tends to yellow under prolonged direct sunlight. Premium UV‑resistant thermofoil film is recommended; avoid continuous intense sun exposure to extend service life.

Frequently Asked Questions (FAQ)

Q1: Are white recessed‑panel thermofoil cabinets durable for kitchen use?

A: These white recessed‑panel door thermofoil kitchen cabinets are durable in dry‑kitchen environments and resist everyday stains and minor scratches. However, prolonged high‑heat steam around stoves and dishwashers may cause thermofoil blistering and delamination. Extra heat‑shield panels are required, or cabinets with alternative finishes would be a better option.

Q2: Can I paint over damaged white thermofoil recessed cabinet doors?

A: Direct paint‑on repair is not recommended once the finish of white recessed‑panel door thermofoil kitchen cabinets gets damaged. The thermofoil PVC vinyl is a non‑porous surface, so paint will peel off very easily. Door replacement is the most reliable solution after film blistering or peeling occurs.

Q3: Are white recessed‑panel thermofoil cabinets easy‑to‑clean?

A: These white recessed‑panel door thermofoil kitchen cabinets are low‑maintenance. Their seamless non‑porous surface allows daily grease to be wiped away effortlessly with a soft cloth and mild detergent. Avoid steel wool and harsh corrosive cleaners, as they will scratch the film finish.

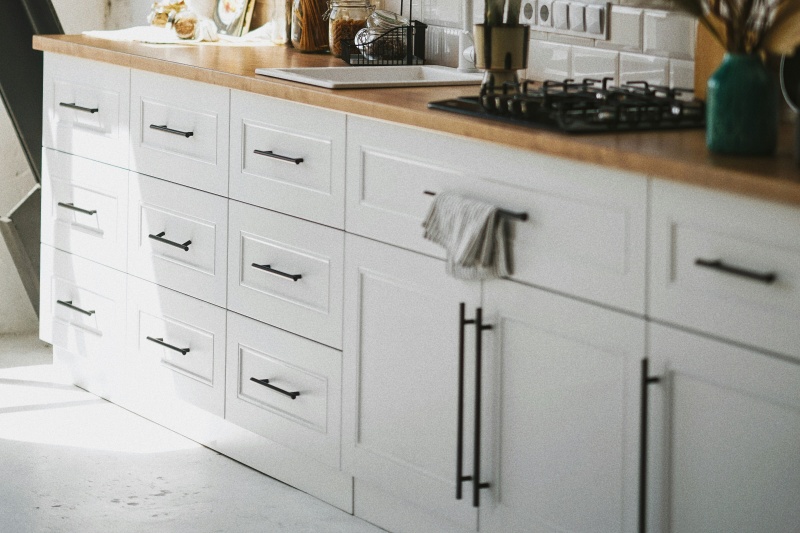

Q4: What hardware matches white recessed‑panel thermofoil cabinet doors best?

A: Matte black, brushed nickel, chrome and brushed gold pulls are all excellent matches. The white finish is highly versatile, and you may select hardware based on personal preference and your kitchen décor style. If you are unsure about hardware pairing, as a Vietnamese cabinet supplier, our professional design team can deliver tailored solutions to meet your requirements.

Q5: Can recessed‑panel thermofoil cabinet doors be custom‑sized?

A: Yes. These white recessed‑panel door thermofoil kitchen cabinets support custom width and height for replacement doors or complete cabinet sets. Three mounting configurations are available: full‑overlay, half‑overlay and inset.
